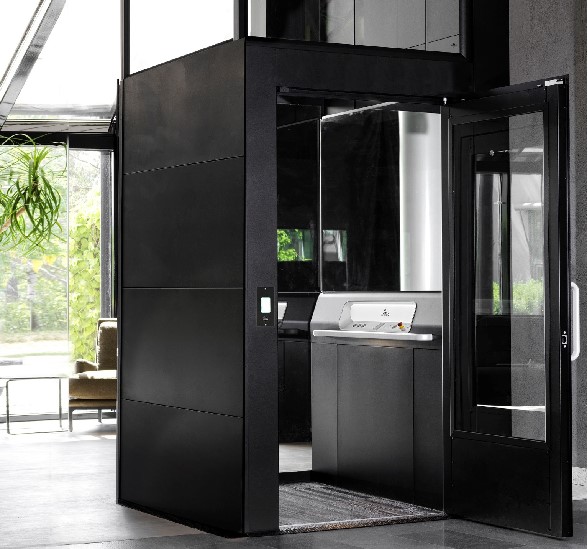

As its name suggests, the professional public elevator has carried out in-depth consideration from the elevator's passable functions. The elevator has a variety of sizes that allow different types of wheelchairs to enter and exit easily. The emergency settlement mechanism of the intelligent safety system and the backup battery can provide protection when the elevator fails, and the automatic door opener can also avoid safety accidents.
The professional public elevator was designed by Alexander Levico. It is designed with public and commercial version operation control panels with its own lights.
Button with logo and braille.
The newly designed ladder door handles and the ladder inner handrails are equipped with lighting lights.
Both public and commercial wall panels are made of strong rubber and aluminum.
The elevator color can be any RAL color in the RAL K7 classic color card (except pearl and fluorescent colors).
Standard clear glass
Optional brown glass
EU Machinery Directive 2006/42/EC European Standard EN 81-41
Patented screw nut system 2.2 kW motor
Maximum speed 0.15 m/s
250 – 13000 mm
2240 mm minimum
2 to 6 floors
Installation with pit: 50 mm below the surface of the ground without pit installation: a slope with a thickness of 50 mm is required
Inching (press once) in Europe, press and operate (press and hold)
Public environment indoor installation environment
Emergency backup power
Standard: White RAL 9016 half-height background wall (without decorative mirror) Optional: Full-height background wall (with decorative mirror and LED lights), standard white RAL 9016 (not applicable to platform size 1100 x 1580 mm, 1100 x 1580 mm )
Single phase 220V
2-year warranty for the whole ladder, 10-year warranty for screw nuts
